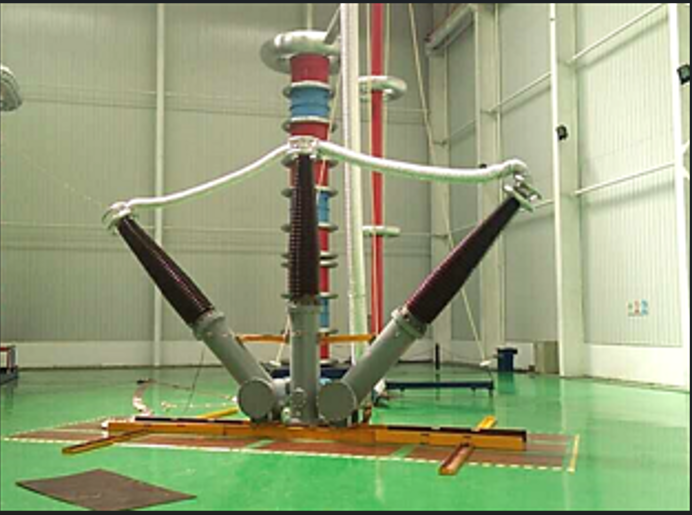

GIS/Breaker Bushing

Rated Voltage 25 ~ 765 kV (IEEE) 24 ~ 1,100 kV (IEC)
Rated Current 400 ~ 5,000 A (IEEE) 630 ~ 5,000 A (IEC)
Standard IEEE C57.19 / IEC 60137
Insulation OIP / RIP
Application GIS / Circuit Breaker
Types Oil-SF6 / Air-SF6
Conductor Draw rod / Plug-in contact
Request Quote Email Us
GIS/Breaker Bushing

GIS/Breaker Bushing

ZDVolt’s GIS/Breaker bushings provide the critical interface between gas-insulated switchgear (GIS) and oil-filled transformer tanks, or between SF6 circuit breakers and external connections. These bushings are designed for the unique demands of compact, gas-insulated environments.

Key Specifications

  • Voltage range: 24 kV to 1,100 kV (IEEE/IEC)
  • Current ratings: 400 A to 5,000 A (IEEE/IEC)
  • Oil-SF6 and Air-SF6 configurations
  • Compatible with major GIS and breaker manufacturers

Interested in this product?

Contact our engineering team for specifications, pricing, and technical support.
