GIS/Breaker BCT

Standard IEC 61869 / IEEE C57.13
Primary Current 400 ~ 8,000 A
Secondary Current 5A, 2A, 1A
Burden 5~200 VA, B-0.1 ~ B-8.0
Application GIS / Circuit Breaker Bushing
Insulation Cast resin
Cores Up to 3 cores per BCT
Request Quote Email Us

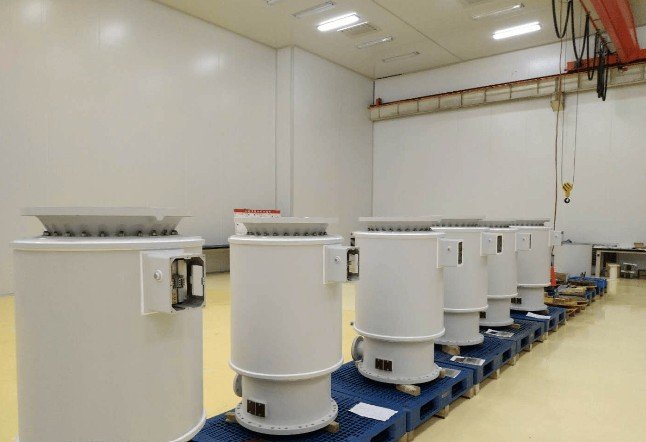

GIS/Breaker BCT

GIS/Breaker BCT

ZDVolt’s GIS/Breaker Bushing CTs are precision current transformers designed for integration with gas-insulated switchgear and circuit breaker bushings. These BCTs provide accurate metering and protection signals in the compact environments typical of GIS installations.

Key Specifications

  • Voltage class: 110 kV to 1,100 kV
  • Up to 3 independent cores per BCT assembly
  • Metering accuracy class: 0.2 / 0.2S / 0.5
  • Protection accuracy class: 5P / 10P / PX
